In today's safety conscious environment testing is the final critical step in assuring that the product being delivered to your customer will meet all of the hose and fitting manufacturers specifications.  Whether you are producing a single assembly or a production run, CustomCrimp^® has the test equipment to give both you and your customer the assurance that the product being produced has been assembled correctly

Hydraulic Hose Test Benches

The CustomCrimp^® "BE" Series Test Benches are designed with features that make proof and burst testing of hydraulic hose assemblies a quick and easy procedure.

• Test pressure range to 50,000 psi (3500 bar) at 85 psi air

• Programmable electronic model with paper tape printout

• Zero to 5000 psi low pressure gage available

• 1/2" polycarbonate safety window

• Powder coat finish for durability

• Test area is at a convenient working height

• Interior coated with polyurethane bed liner material

• Automatic pressure cut off when door is opened

• 6 port multiple outlet manifold is standard

• Built in work light for good visibility during testing

• Pressure medium is standard tap water outlet

• Full front opening allows hose to be loaded on a skid

• Interior Dimensions: 18" high X 35 " wide X 71" long

• Three pressure ranges are available:

  BE1500: 1500 bar ( 21,500psi)

  BE2500: 2500 bar (37,500psi)

  BE3500: 3500 bar ( 50,000psi)

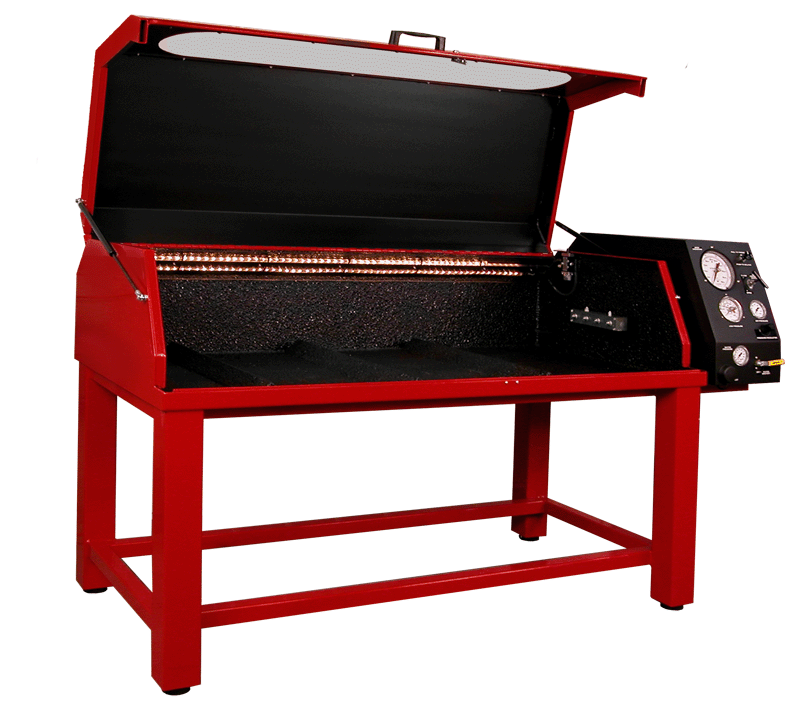

Manual BE Series Test Bench

Electronic BE Series Test Bench

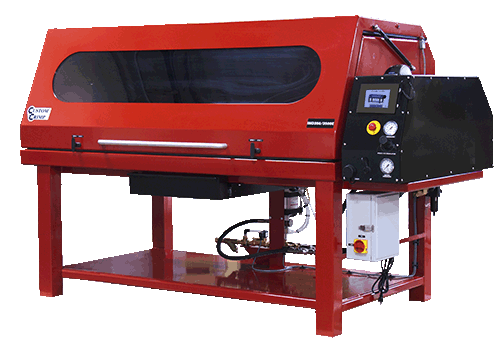

Industrial Test Benches

CustomCrimp^® Industrial Test Benches offer the same features and options as the Hydraulic Benches with the additional feature of a high capacity pump which allows industrial hoses to be pressure tested up to 5000 psi

CustomCrimp^® Industrial benches have the same high pressure manifold connections and pressure range capacities as the above BE Series benches.  Additionally, however they are also equipped with a high capacity 5000 psi pump and a removable side panel which allows for the attachment of an optional tray for longer hoses.

Interior Dimensions are:

32" high X 48" wide X 84" Long

The video at the right describes set up of the BE Series benches and also the set up and operation of the electronic monitoring software and recording software.

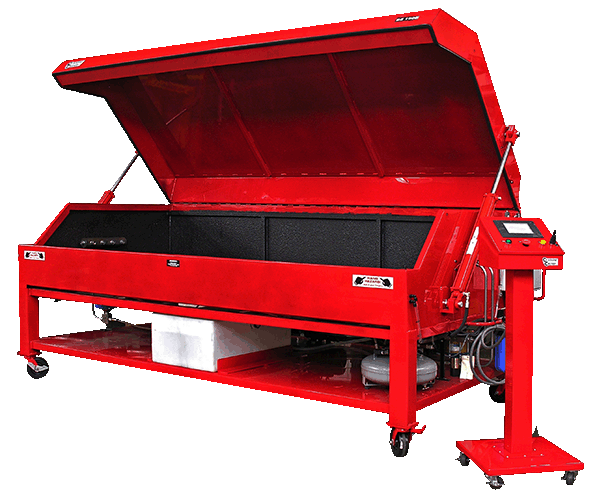

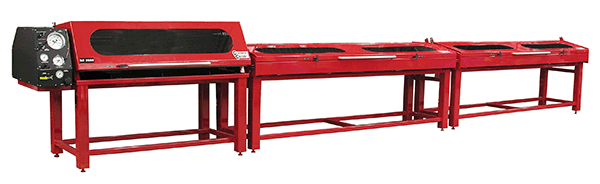

Customized and Special Design Benches

In addition to the standard CustomCrimp^® product line high pressure test consoles can be designed to meet specific requirements.  Special purpose test benches can also be designed by our engineering department.
