   CustomCrimp®  D SERIES CRIMPER SPECIFICATIONS


CLICK ON IMAGE FOR LARGER VIEW

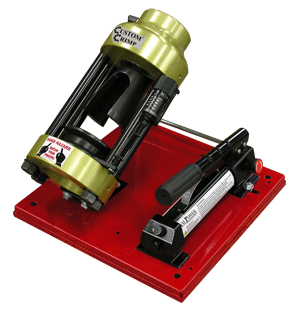

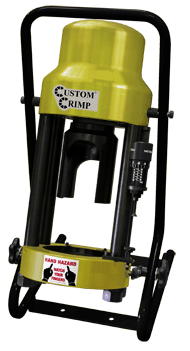

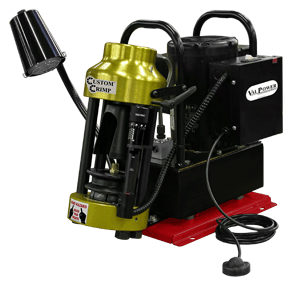

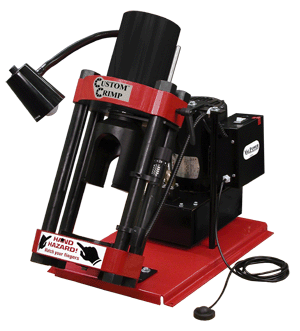

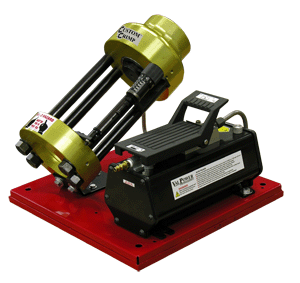

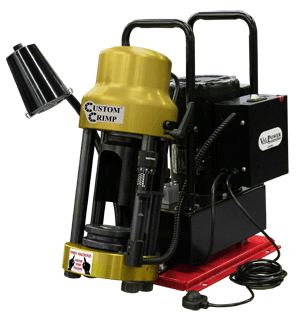

  D100S D100H D100P D105 D160 D165 D205/206
    D100  D100  D100  D100 D100 D100 D200
 Maximum Cylinder   Force 35 Ton 35 Ton 35 Ton 35 Ton 60 Ton 60 Ton 80 Ton

 Max Hose Diameter

 (2 Wire)

   1"   1"    1"  1" 1 1/4" 1 1/4" 1-1/2"

 Max Hose Diameter

 (4 Wire)

  3/4"  3/4"  3/4" 3/4" 1 1/4" 1 1/4"  1-1/2" (2)
 Max Hose (DA Tool-6 Wire) N/A N/A N/A N/A 1" 1" 2" (1)
 Crimper Depth   14" 16" 16" 20" 14" 22" 29"
 Crimper Width   11" 16" 16" 12 1/2" 11" 12 1/2" 37.5"
 Crimper Height   23 1/2" 17" 17" 19" 23 1/2" 22 1/4" 32"
 Weight 45 Lb 75 Lb 85 Lb 125 Lb 50 Lb 140 Lb 400 Lb
 Pump   N/A Man-2Stge Pneumatic Electric N/A Electric Electric
 Pump HP N/A N/A N/A 1 HP N/A 1 HP

 2 HP(D205)
1  HP(D206)
 Power Requirement   10,000 Psi N/A 80 Psi Air 110V-15A 10,000 Psi 110V-15A 220V(D205)
110V (D206)
 Approx Crimps/Hr (3) N/A N/A N/A 450 N/A 300 345 (D205)
215 (D206

Specifications are reference only

(1) DA (Double Angle) Die required

(2) 1 Piece Fitting Style-No Skive Hose

(3) Based upon -8 100R2AT hose with 1 pc style fitting
