   CustomCrimp®  CC CRIMPER SPECIFICATIONS

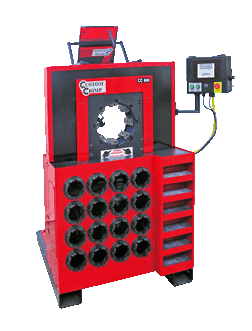

CC Series crimpers

with ACTTM Electronic

programmable

control


CLICK ON IMAGE FOR LARGER VIEW

  Crimper Series

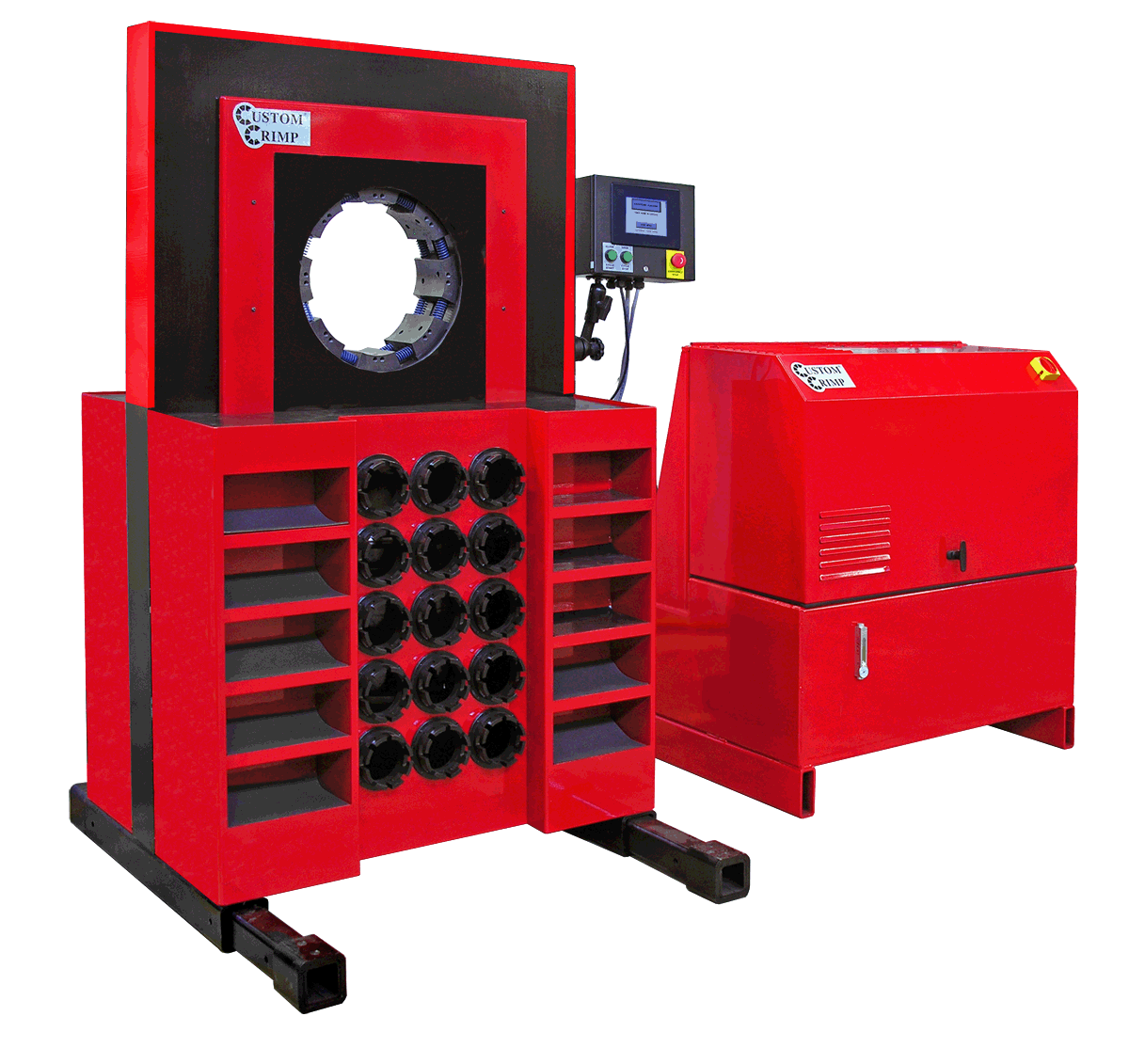

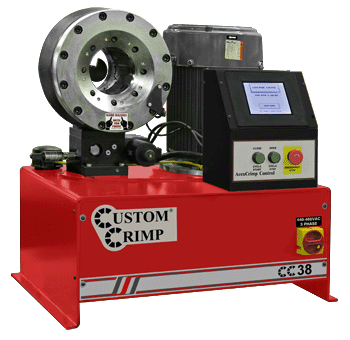

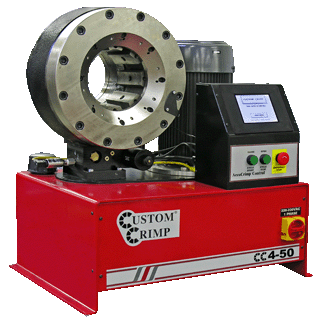

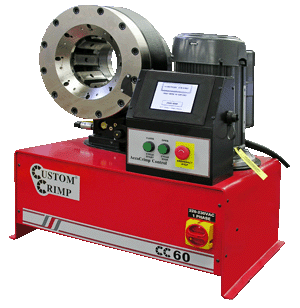

 CC38 CC4-50 CC60 CC650 CC1000
  Master Die I.D. (Standard)

84mm

 130mm 145mm 160mm 230mm
  Crimping Force 240 Ton 340 Ton 265 Ton 350 Ton 485 Ton
  Max Hose Diameter (2 Wire) 2" 2-1/2" 2" 2-1/2" 2-1/2"
  Max Hose Diameter (4 Wire) 1-1/2" 2-1/2" 2" 2-1/2" 2-1/2"
  Max Hose Diameter (6 Wire) 1-1/4" 2-1/2" 2" (1) 2-1/2" 2-1/2"
  Max Industrial Hose Diameter N/A 2-1/2" 4" 6" 10"
  Max Opening (Die Size plus) 38mm 38mm 60mm 128mm 125mm
  Max Die Opening w/o Dies 120mm 160mm 182mm 285mm 350mm
  Length 29" 29" 29" 48" 30"
  Width 20" 20" 20" 36" 44"
  Height 28" 32" 32" 57" 74"
  Weight 474 lb 579 lb 579 lb 4000 lb 6185 lb
  Electrical Power (Std) 230V 3Ph/230V 1PH 230V 3Ph/230V 1PH 230V 3Ph/230V 1PH 230V 3 Ph 230V 3 Ph
  Electrical Power (Optional) 440V 3 Ph 440V 3 Ph 440V 3 Ph 440V-480V 3 Ph 440V-480V 3 Ph
  Pump HP 5.0 HP 7.5 HP 7.5 HP 7.5 HP (2 Stage) 7.5 HP (2 Stage)
  Manual/Fully Automatic Crimping Yes Yes Yes Yes Yes
  Inch/Metric Settings Yes Yes Yes Yes Yes
  Accepts Die Series: CustomCrimp® 84S 84S-99S-130S 84S-99S-145S 84S-99S-160S 84S-99S-145S-230S
  Accepts Die Series: FinnPower® P20 P20-P32 P20-P32 P20-P32 P20-P32

 Accepts Die Ser: Imperial Eastman®

 KK120 KK120-KK200 KK120-KK200 KK120-KK200 KK120-KK200
Approximate Crimps per Hour (2) 1300 1130 1415 2200 1030

CC Series crimpers

with manual

micrometer

crimp adjustment





CLICK ON IMAGE FOR LARGER VIEW

  Crimper Series

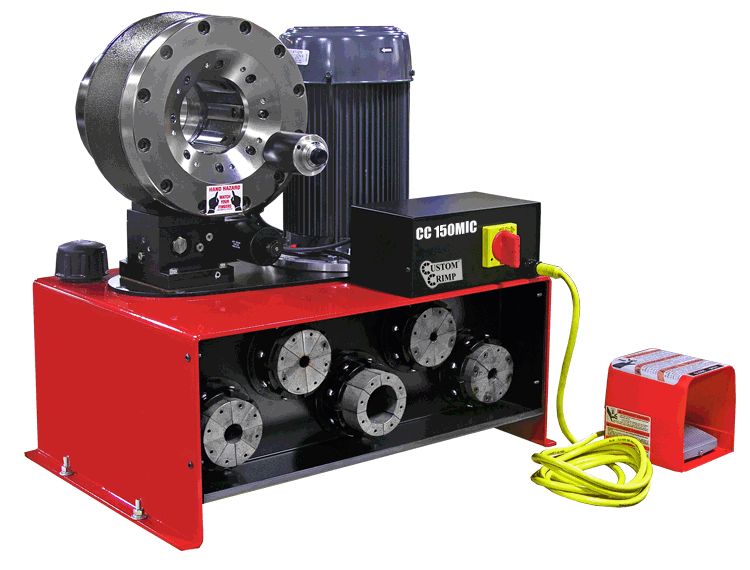

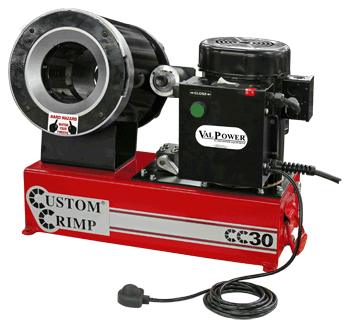

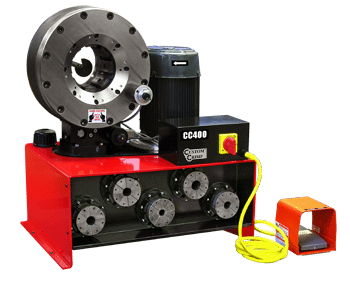

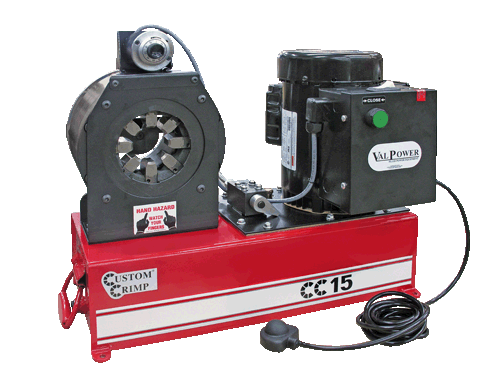

 CC15 CC30 CC150MIC CC200 CC400 CC650MIC
  N/A

84mm

84mm

 130mm 145mm 160mm
  Crimping Force 33 Ton 155 Ton 240 Ton 340 Ton 265 Ton 350 Ton
  Max Hose Diameter (2 Wire) 5/8" 2" 2" 2-1/2" 2" 2-1/2"
  Max Hose Diameter (4 Wire) 1/2" 1-1/2" 1-1/2" 2-1/2" 2" 2-1/2"
  Max Hose Diameter (6 Wire) N/A 1-1/4" 1-1/4" 2-1/2" 2"(1) 2-1/2"
  Max Industrial Hose Diameter N/A N/A N/A 2-1/2" 4" 6"
  Max Opening (Die Size plus) 27.5 mm 38 mm 38mm 38mm 60mm 128mm
  Max Die Opening w/o Dies 94 mm 125 mm 120mm 160mm 182mm 285mm
  Length 23-1/2" 23-1/2" 29" 29" 29" 48"
  Width 15" 18" 20" 20" 20" 36"
  Height 18-1/2" 20-1/2" 28" 32" 32" 57"
  Weight 150 lb 255 lb 474 lb 579 lb 579 lb 4000 lb
  Electrical Power (Std) 110 V 1 Ph 1 HP/110V 230V 3Ph/230V 1PH 230V 3Ph/230V 1PH 230V 3Ph/230V 1PH 230V 3 Ph
  Electrical Power (Optional) 220 V 1 Ph 220V 1 Ph 440V 3 Ph 440V 3 Ph 440V 3 Ph 440V-480V 3 Ph
  Pump HP 1 Hp 1 HP/2 HP 5 HP 5 HP 5 HP 5 HP
  Manual/Fully Auto Crimping Manual Manual Manual Manual Manual Manual
  Inch/Metric Settings Metric Only Metric Only Yes Yes Yes Metric Only
  Customcrimp® Die Series: 103702 84S-P20 84S 84S-99S-130S 84S-99S-145S 84S-99S-160S
  FinnPower® Die Series: N/A P20 P20 P20-P32 P20-P32 P20-P32

 Imperial Eastman® Die Series

N/A KK120 KK120 KK120-KK200 KK120-KK200 KK120-KK200
Approximate Crimps per Hr (2) N/A 500 1300 1130 1415 2200

(1) 1 Piece Fitting Style

(2)  Based upon -8 100R2AT hose with 1 pc style fitting

(3)  99mm ID Adapter Die Set (Incl)

Specifications are reference only
